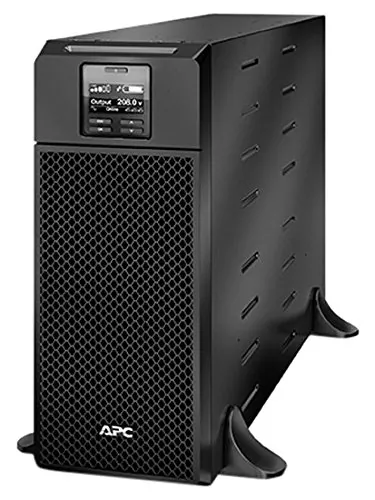

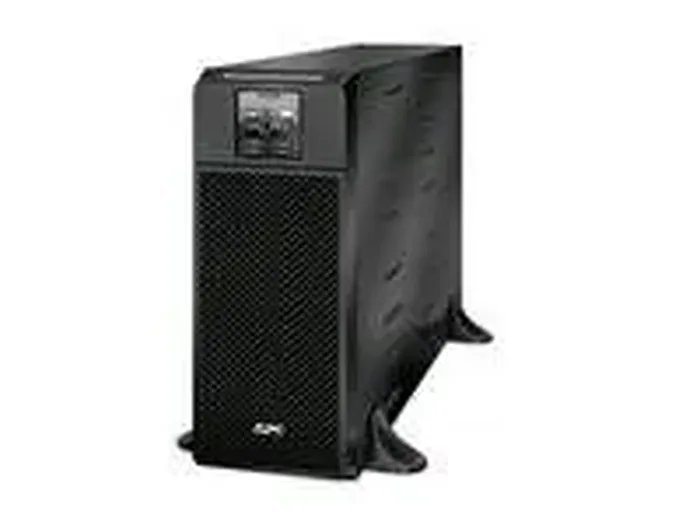

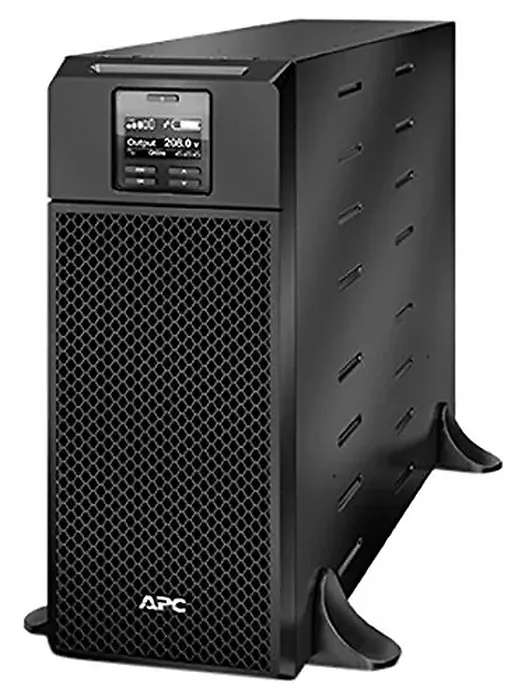

Apc SRT6KXLT Apc Smartups Online6000 Watts 6000 Vainput 208v Output 208v Extended Runt
by APC - Schneider Electric
Price: | $6536.60 |
MFG Part: | SRT6KXLT |
UPC: | 731304301677 |
Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Sep 1, 2022 | Updated On: Dec 21, 2024 | Views: 324
UPS - AC 230 V - 6000 Watt - 6000 VA - Ethernet 10/100 USB - output connectors: 13 - black
Specifications
Output
Output power capacity: 6.0 KWatts / 6.0 kVA
Max Configurable Power (Watts): 6.0 KWatts / 6.0 kVA
Nominal Output Voltage: 208V
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 240
Load Crest Factor: 3 : 1
Topology: Double Conversion Online
Waveform type: Sine wave

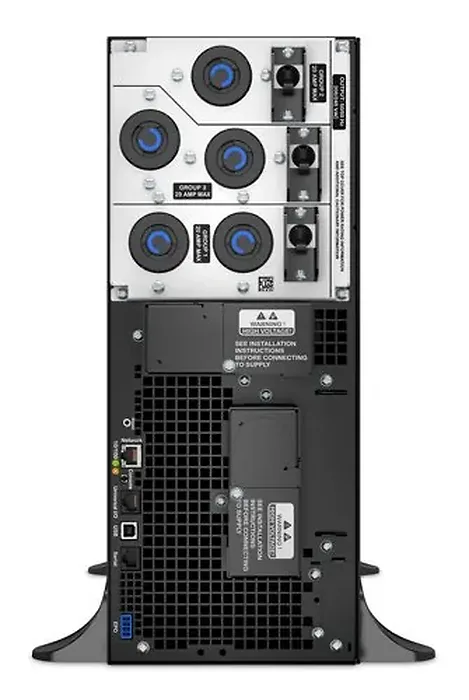

Output Connections:
(1) Hard Wire 3-wire (2PH + G) (Battery Backup)
(2) NEMA L6-20R (Battery Backup)
(3) NEMA L6-30R (Battery Backup)
Bypass: Internal Bypass (Automatic and Manual) Input
Nominal Input Voltage: 208V
Input frequency: 40 - 70 Hz (auto sensing)
Input Connections: Hard Wire 3-wire (2PH + G)
Input voltage range for main operations: 160 - 275V
Input voltage adjustable range for mains operation: 100 - 275 (half load)V
Other Input Voltages: 240 Batteries and Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 1.5hour(s)
Replacement Battery: APCRBC140
Expected Battery Life (years): 3 - 5
RBC Quantity: 1
Extendable Run Time: 1
Battery Volt-Amp-Hour Capacity: 875
Extended Run Options: APC-Smart-UPS-SRT-6000VA-208V
Runtime:
- View Runtime Graph
- View Runtime Chart
Efficiency: View Efficiency Graph Communications and Management
Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes
Available SmartSlotTM Interface Quantity: 1 Surge Protection and Filtering
Surge energy rating: 480Joules Color
Black Environmental
Operating Environment: 32 - 104oF ( 0 - 40oC )
Operating Relative Humidity: 0 - 95% non-condensing %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -15 45oC
Storage Relative Humidity: 0 - 95% non-condensing %
Storage Elevation: 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit: 55.0dBA
Online thermal dissipation: 1402.0BTU/hr
Protection Class: IP 20 Conformance
Approvals: CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, NOM, UL 1778 Sustainable Offer Status
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: ts_Battery_Notes Item Dimension (L inchxW inchxH inch)
38 x 25 x 15
Weight
142.00 lb
Warranty Information
3 Years Repair or Replace (Excluding Battery) and 2 Years for Battery
